Write(VTB)

Operation Name

Write(VTB)

Function overview

Following the content of virtual table created in Dr.Sum VTB Creator, writes data in high speed onto table of Dr.Sum.

Properties

For information about using variables, refer to "variables".
Basic settings
Item name Required/Optional Use of variables Description Remarks
Name Required Not available Enter the name to show on the script canvas.
Required settings
Item name Required/Optional Use of variables Description Remarks
Destination Required Not available Select a global resource.
For more details on Global Resource settings, refer to " Global Resource Property".
  • [Add]:
    Adds a new global resource.
  • [Edit list]:
    Enables to edit the global resource settings in the "Edit resource list".

Virtual table path Required Available Enter the path of virtual table file.
Virtual table name Required Available Enter the name of virtual table file.
Table name Required Available Select or enter the table name of database.
  • View, multi-view, link table will not be diplayed.
Import mode Required Not available Select the action during import.
  • [Import after deleteing rows inside table]:(default)
    Executes import after deleteing all the records inside table.
  • [Add row on the table]
    Executes import after adding records to the table.
  • [Update when key overlap]
    Updates when items specified in [Key column name] matches.
  • [Update when key overlap] is displayed, if DataLoader is valid, and if you select the table with key column or compound key which NOT NULL UNIQUE restriction is given to [Table name].
  • If you select distributor in [Table name], [Import after deleteing rows inside tables] cannot be selected.
Action upon error Required Not available Select an action when error occurred.
  • [Discontinue]:(default)
    If any error has occured, data import will be discontinued. Data will not be modified at all.
  • [Continue]
    If error has occurred, the error row will be skipped and continues the data import. Processes only the data which successfully updated.

Key column name Optional Available Select or enter the column that will be used as a key.
  • A column or compound key with NOT NULL UNIQUE restriction can be selected.
  • An error occurs if column or compound key without the NOT NULL UNIQUE restriction are selected.
  • Multiple columns cannot be used as keys.
  • Compound key cannot be used for Dr. Sum EA 4.2 or earlier versions.
Property Action
Item name Remarks
Show Table Information Displays table structure, contents, and relevant information inside the database specified at [Destination].
For table information, refer to "table information".
  • If [Destination] is selected, it will be valid.
  • You cannot select view, multi-view, link table.
  • If select distributer, contents of table will not be displayed.
  • Specified table at [Table name] will be initial displayed.
Write settings
Item name Required/Optional Use of variable Description Remarks
Input format Required Not available Select the format of virtual table file.
  • [CSV]:(default)
    Select if you are using another CSV file against CSV virtual table to import.
  • [Database]:
    Select when setting extraction condition method to the virtual table of Database system.

CSV file path Optional Available Specify CSV file in Dr.Sum server as absolute path of server OS local file system.
  • If select [CSV] at [Input format], it becomes valid.
  • If file is selected in file Selectr, "/" is given to the front, however converts to inherent pass format of OS upon execution.
Extraction condition method Optional Available Setup extraction condition method.
  • If select [Database] at [Input format], it becomes valid.
Comment
Item name Required/Optional Use of variables Description Remarks
Comment Optional Not available You can write a short description of this adapter.The description will be reflected in the specifications.

Schema

Input Schema

None.

Output Schema

None.

Transaction

Transaction is not supported.

PSP Usage

PSP is not supported.

Available Component Variables

Component variable name Description Remarks
count The number of records written.
  • Default value is 0.
error_code When an error occurs, Dr.Sum returns the error status in decimal value.
  • Default value is null.
  • The message may vary depending on DataSpider Servista version.
message_category Stores the category of message code corresponding to the occured error.
  • Default value is null.
message_code Stores the code of message code corresponding to the occured error.
  • Default value is null.
message_level Stores the severity of message code corresponding to the occured error.
  • Default value is null.
error_type Stores the type of the occured error.
  • Default value is null.
  • Error is represented in the format depicted below.
    Ex: "java.io.FileNotFoundException"
  • The message may vary depending on DataSpider Servista version.
error_message Stores the error message for the occured error.
  • Default value is null.
  • The message may vary depending on DataSpider Servista version.
error_trace Stores stack trace of the occurred error.
  • Default value is null.
  • The message may vary depending on DataSpider Servista version or the client application used.

Specification Limits

Refer to following pages for specification limits of each adapter's characteristic.

Main exceptions

Name of exception Cause Measure
ResourceNotFoundException
Resource definition could not be found.Name: []		 [Destination] is not specified. Specify [Destination].
ResourceNotFoundException
Resource definition could not be found.Name: [<Global Resource Name>]		 Resource definition selected in [Destination] is not found. Please check the global resource specified in [Destination]
InvalidPropertyConfigurationException
Virtual table pass is not defined.		 [Virtual table pass] is not set. Specify [Virtual table pass].
InvalidPropertyConfigurationException
Virtual table name is not defined.		 [Virtual table name] is not set. Specify [Virtual table name].
InvalidPropertyConfigurationException
Table name is not defined.		 [Table name] is not set. Specify [Table name].
jp.co.dw_sapporo.drsum_ea.DWException
Non-existing item name is specified.		 Column name that does not exist in the table of write destination is specified to [Key column name]. Specify the column name that exists in the table of write destination at [Key column name].
jp.co.dw_sapporo.drsum_ea.DWException
Item type is false.		 Column that NOT NULL UNIQUE restriction is not given is specified to [Key column name]. Specify the column name or compound key that NOT NULL UNIQUE restriction is given to [Key column name].
jp.co.dw_sapporo.drsum_ea.DWException
Virtual table cannot be found.		 Virtual table specified in [Virtual table pass], [Virtual table name] cannot be found. Confirm [Virtual table pass] and [Virtual table name].
jp.co.dw_sapporo.drsum_ea.DWException
Data format error.		 [Discontinue] is selected in [Action upon error], and importing data format is false. Confirm contents of CSV and database.
jp.co.dw_sapporo.drsum_ea.DWException
Some data are skipped due to error.		 [Continue] is selected in [Action upon error], and error occurred during the process. Confirm contents of CSV and database.

Note

Refer to following pages for note of each adapter's characteristic.

Image Process

Read the contents of CSV file, write table with write(VTB) operation.

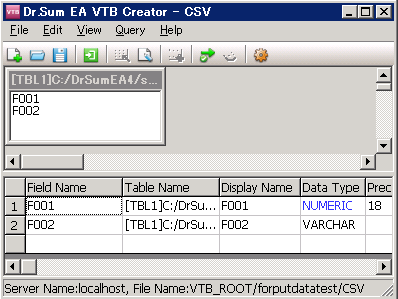

  1. Create CSV virtual table with Dr.Sum VTB Creator.

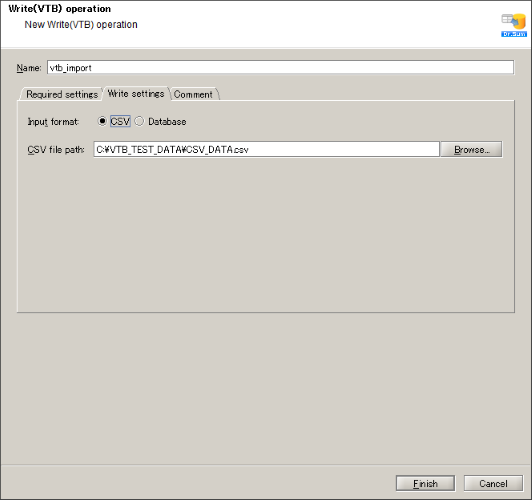

  2. Use CSV where Dr.Sum server is arranged to import data.



  3. Data will be imported to table.
