[Merge Mapper]Switch

Logic Name

Switch

Function

Alters output by switch.

Data Types

Location	Type
The first input handler	Condition
The second input handler	String
The third input handler	String
Logic output	String

Refer to "Logic Specifications" for details.

Properties

Category	Property	Description
Required	Number of Condition	Specify the number of conditions as 1 or more.
Comment	Comment	The comment will also be output to the specifications.It does not affect the conversion process.

Function Details

Number of Condition

Enter 1 or a larger number as [Number of Condition].It is equivalent to the number of condition of switch.
(2*n)+1 input handlers will appear according to the specified number(as n) of [Number of Condition].

Number of Condition	1	2	3	4	5	n
Number of input handler	3	5	7	9	11	(2*n)+1

Maps Boolean to the number (2*n)-1 handler.
Maps String to the number (2*n) handler to output when the Boolean is true.
Boolean is determined from the top, and string is returned when the Boolean becomes true.

Number	Type	Description
First	Boolean	Output this string when this Boolean is true. Move on to the the determination of the third handler.
Second	String
Third	Boolean	Output this string when this Boolean is true.Move on to the the determination of the fifth handler.
Fourth	String
Fifth	Boolean	Output this string when this Boolean is true.Move on to the the determination of the seventh handler.
Sixth	String
...	Boolean	...
...	String	...
Finally th	String	Returns this string by default if the Boolean is false till the end.

The recommended maximum value for [Number of Condition] is 100.

Logic Sample

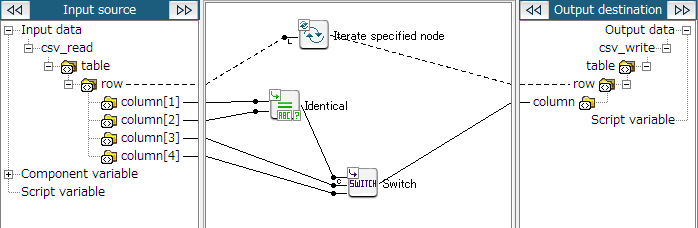

Mapping Definition

Logic Settings and Processing Result

If "1" is specified as [Number of Condition], three input handler appear. If the value of "column[1]" and the value of "column[2]" are the same, output "column[3]". If not, output "column[4]".

Property Settings

Property	Setting
Number of Condition	1

Input Data

SampleData Inc.,SampleData Inc.,Identical,Not Identical

Sample Data,Sample Data,OK,NG

USA,Japan,Yes,No

Result Data

Identical
