Outbound Processing Tutorial

In this tutorial, executes DataSpider script using the execution of BAPI in SAP system as a trigger. RFC, IDoc can be executed in the same flow.
As the actual process, executes BAPI "STFC_CONNECTION", writes the data passed from SAP system to XML file, then return the executed time from DataSpider to SAP system.

Configuration in Tutorial

In this tutorial, the following configuration is assumed. Please change it according to the actual environment.

Item name	Value
R/3 server	DEVECC2
System Number	00
Client Number	300
Logical System	M60CLNT300

Preparation in Advance

Prepare RFC User

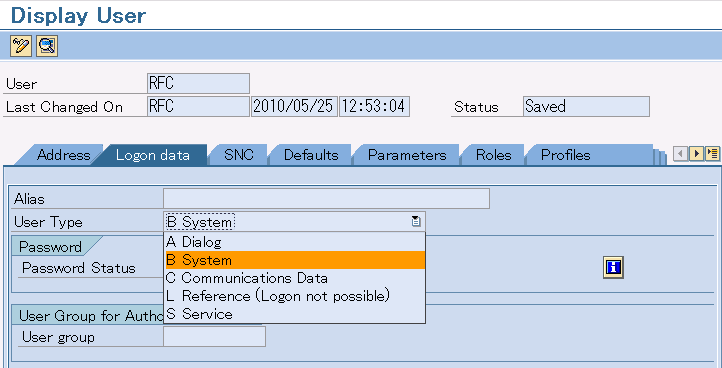

Registers RFC user for DataSpider Servista to the client to connect. If already registered, it is not necessary to register again.
In general, creates user with type of "Communications data" or "System".

SAP Business Connector Settings

To execute outbound processing, SAP Business Connector(hereafter, SAP BC) needs listener setting.

For more information about SAP BC settings, please refer to the manual of SAP BC.

Check SAP BC startup
Access to SAP BC by Web browser with the URL below.
"http://<hostname>:<port>/"

Item name Description

hostname The host name or IP Address of the OS on which SAP BC operates

port The port number that SAP BC is started.

By default, the following is set.

Item name Value

Port number 5555

User name Administrator

Password manage

Create SAP BC user
Create user for DataSpider Servista in SAP BC. If already created, it is not necessary to create again.

Press "Security"-"Users and Groups" of SAP BC to open ""Users and Groups" screen.

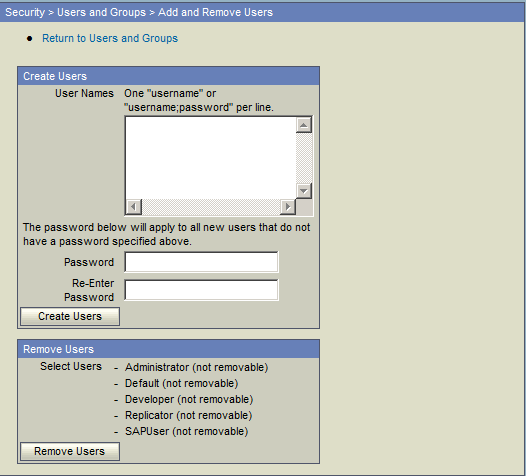

Press "Add and Remove Users" to open Create New User screen.

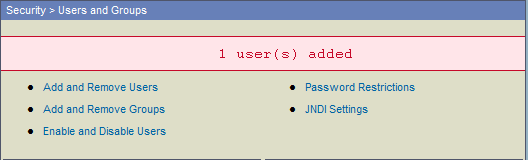

Enter the user name and password, press "Create Users" button.

Item name	Description
hostname	The host name or IP Address of the OS on which SAP BC operates
port	The port number that SAP BC is started.

Item name	Value
Port number	5555
User name	Administrator
Password	manage

Connection settings to SAP system
Set connection to SAP system in SAP BC. If already set, it is not necessary to set again.

Press "Adapters" - "SAP" to open SAP server setting screen.

SAP Menu

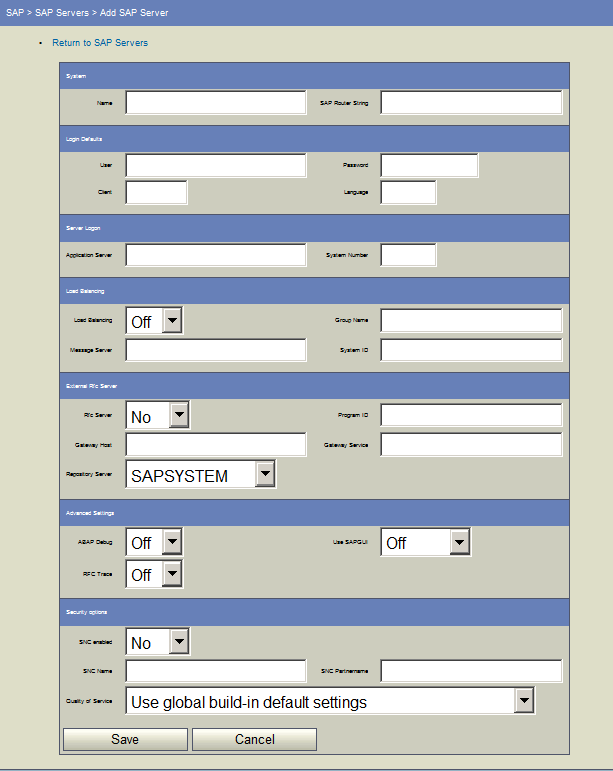

Press "Add SAP Server" and enter the information of the SAP system to connect. The settings are as follows.

Item name	Description
Name	Name on display
User	User name to log in to SAP system For tutorial, enter "RFC".
Password	Password of the user to log in to SAP system
Client	Client Number For tutorial, enter "300".
Application Server	The host name or IP Address of the OS on which SAP operates. For tutorial, enter "DEVECC2".
System Number	System Number For tutorial, enter "00".

Enter the required information and press "Save" button.

Press the names of the added SAP system to open SAP system setting screen.

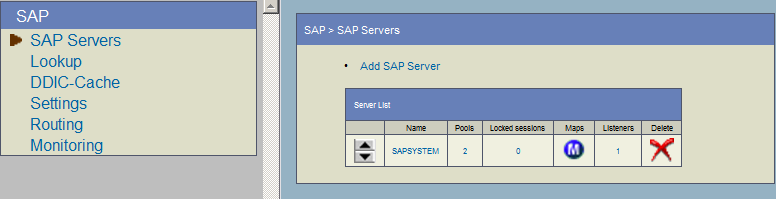

SAP server list

Press "Test Connection" button of the SAP system setting screen to test connection.

Connection test

Register Listener
Register lister from SAP BC to SAP system.

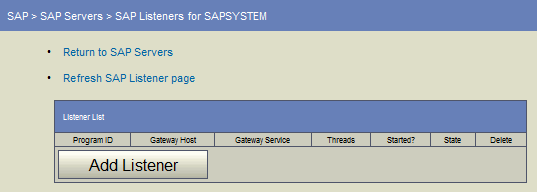

Press "Listeners" column of the added SAP system to open listener list.

Select Listener

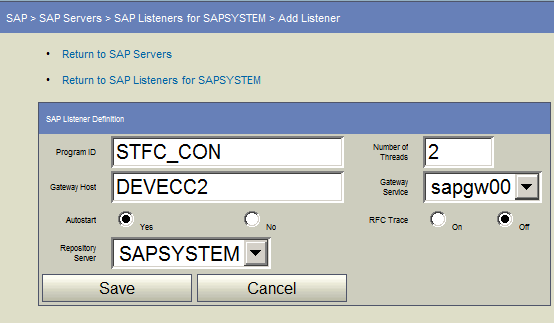

Press "Add Listener" button to open the Create Listener screen. Enter the following value on the Create Listener screen.

Item name	Value
Program ID	STFC_CON
Gateway Host	The host name or IP Address of the OS on which SAP operates. For tutorial, enter "DEVECC2".
Gateway Service	The gateway service that operates on SAP system. For tutorial, enter "sapgw00".

Press "Save" button to create listener.

Listeners have created "Started?"column is depressed to start the listener.

Start STFC_CON Listener

Check Registered Program
Login to SAP system and check whether the program is successfully registered to gateway service.

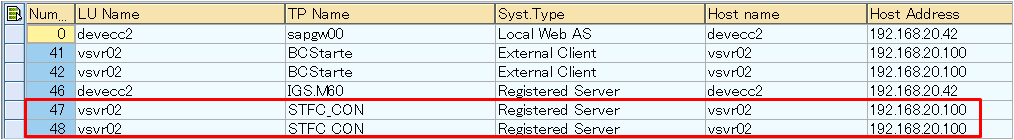

On SAP GUI, executes transaction code "SMGW" and open the gateway monitor. Select "Jump" - "already logged on to the client" menu of the gateway monitor and check the following entry of the connection from the created listener exists.

Item name Content

LU name The host name or IP Address of the OS on which SAP BC operates

TP name STFC_CON

Syst. Type Registered Server

Item name	Content
LU name	The host name or IP Address of the OS on which SAP BC operates
TP name	STFC_CON
Syst. Type	Registered Server

Configuration of RFC Connections

For outbound processing, sets RFC connection in SAP system.

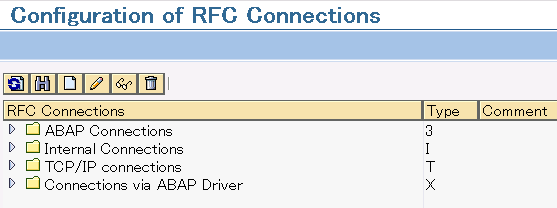

Configuration of RFC Connections
Defines RFC connection that refers to the program of listener registered on SAP BC. Execute transaction code "SM59" in SAP GUI.

Show RFC Destination

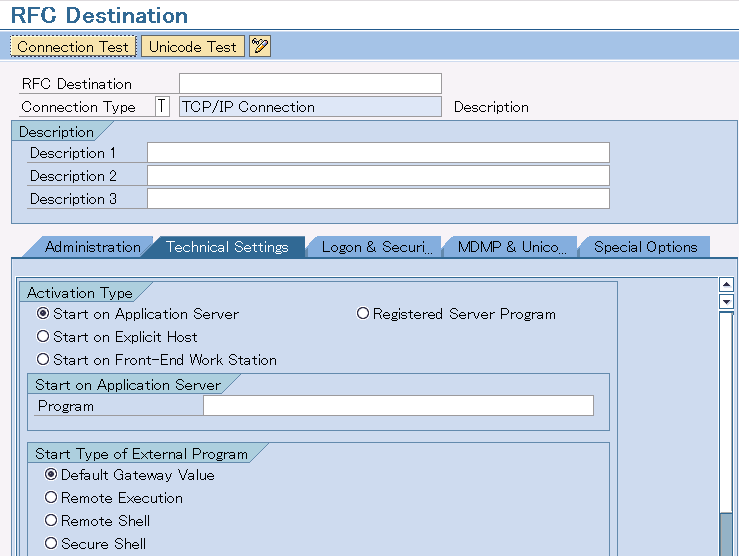

Select "TCP/IP connections" and press [Register] button.

Register new RFC connection

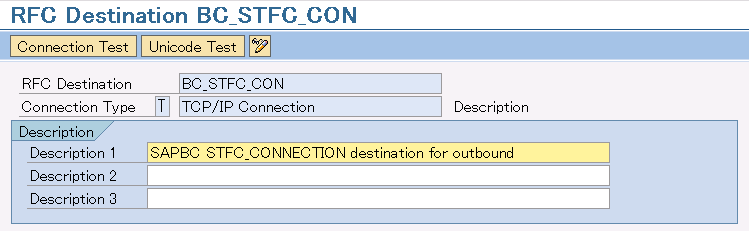

Enter the following values on Register RFC Destination screen.

[TAB]:	Item name	Value
Basic Screen	RFC Destination	BC_STFC_CON
	Connection Type	T (TCP/IP Connection)
	Description 1	SAPBC STFC_CONNECTION destination for outbound
Technical Settings	Activation Type	Registered Server Program
	Program ID	STFC_CON
	Gateway Host	The host name or IP Address of the OS on which SAP operates. For tutorial, enter "DEVECC2".
	TCP service	The gateway service that operates on SAP system. For tutorial, enter "sapgw00".

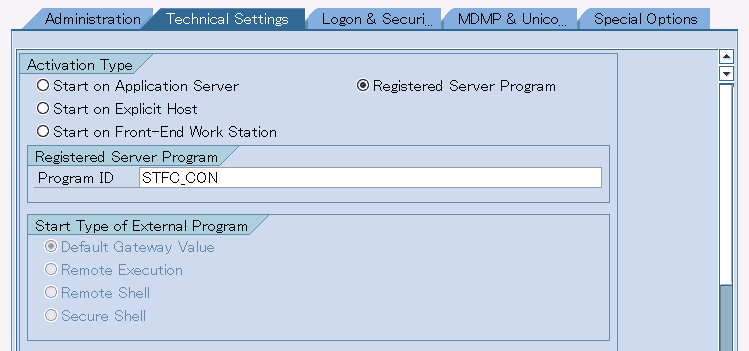

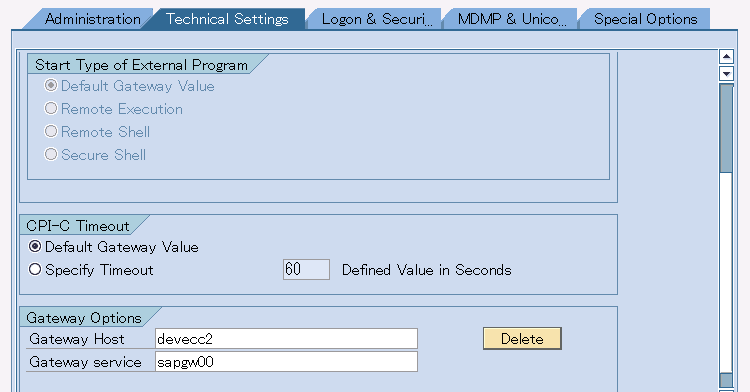

STFC_CON RFC destination technical setting

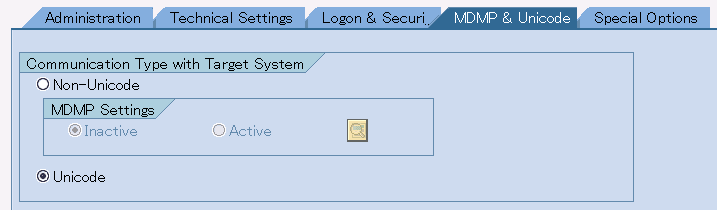

When using Unicode system, select [Unicode] from [Communication type with target system] from [MDMP/Unicode] tab.

Press "Save" button to register RFC destination.

Connection test
Press [Connection Test] to test connection.

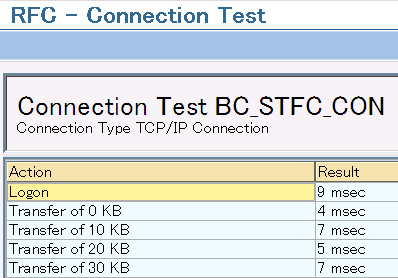

If the connection test is successful the following screen will appear.

If the connection test fails, please check the following.

RFC destination setting in consistent with SAP BC listener setting

SAP BC is started

Get schema for input and output data
Gets the schema for input and output data of the script to start with outbound processing.

Get XML template for Input Data
Press "Adapters" - "SAP" to open SAP server setting screen.

Press "Lookup" to open the module searching screen.

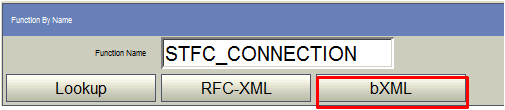

Enter the following information on the module searching screen and press "bXML" button.

Item name Value

Function Name STFC_CONNECTION

When getting XML template of RFC general module, enter the RFC general module name to execute to "Function Name" and press "RFC-XML" button.
Please contact SAP corporation about how to get XML template of IDoc.

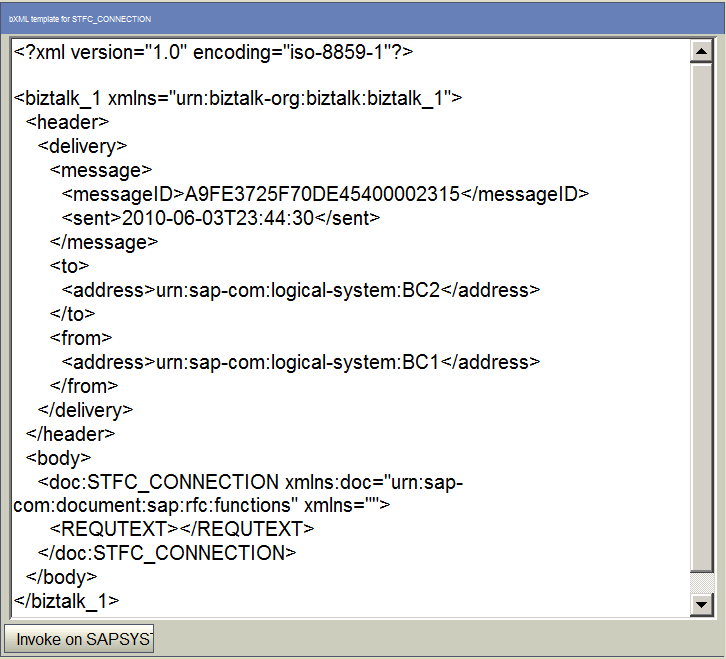

The shown XML template is the schema of the input data of the script started by outbound processing. The shown XML template is saved as file under the following directory. Please create the directory if necessary.

Item name Value

Pass /data/sapbc/bapi_outbound/stfc_connection_input.xml

Get XML template for Output Data
Press "Invoke" button to test execution.

The shown XML template is the schema of the output data of the script started by outbound processing. The shown XML template is saved as file under the following directory.Please create the directory if necessary.

Item name Value

Pass /data/sapbc/bapi_outbound/stfc_connection_output.xml

Create script for Outbound
Receive outbound processing of SAP system with SAP BC trigger and start script. Save the request data passed from SAP system in the script to XML file, and return the current time to SAP system as response data.

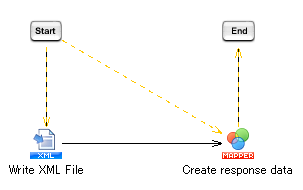

Completed Script Image

Create Project and Script
Creates project and script of the follows.

Item name Value

Project Name SAP BC Adapter Tutorial

Script Name Outbound BAPI

Create an XML type script variable for input/out
Creates XML type script variable as the following contents.

Variable name Type Input/Output

in_xml XML type Use variables as script input variable

out_xml XML type Use variables as script output variable

Create Write XML File
Place "File" - "XML" - "Write XML file" of tool palette on Script Canvas.
Set the following values in the property settings dialog of Write XML File.

Category Item name Value

Basic settings Name Write XML File

Input data in_xml

Required settings File /data/sapbc/bapi_outbound/stfc_connection_output.xml

Create response data
Place "convert" - "basic" - "mapping" of Tool Palette on Script placed Canvas. Sets the following values in the mapping.

Category Item name Value

Basic settings Name Create response data

Input Data Flow in_xml

Output Data Flow out_xml

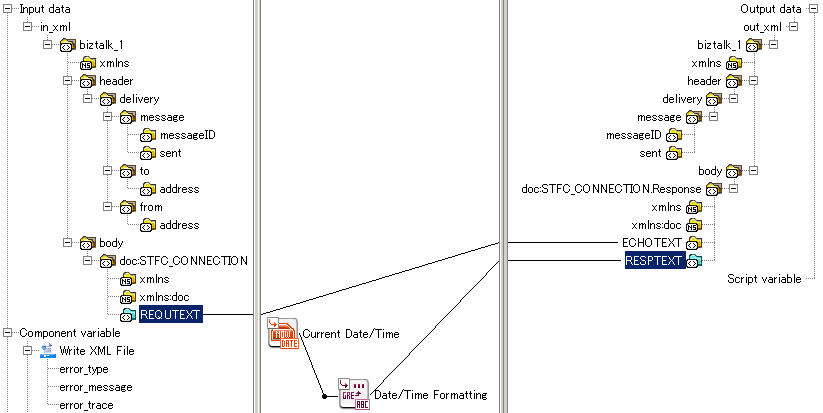

Open mapping "Create response data" and maps as follows.

Item name Value

Input Schema Read from file /data/sapbc/bapi_outbound/stfc_connection_input.xml

Output Schema Read from file /data/sapbc/bapi_outbound/stfc_connection_output.xml

Input Source Item Name Logic Icon Name Output Destination Item Name

REQTEXT ECHOTEXT

[Date] - [Basic] - [Current date/time]

[String] - [Date] - [Date/Time Formatting]

RESPTEXT

Sets the following values in Convert Date Format.

Item name Value

Format yyyy/MM/dd hh:mm:ss

Process Flow Settings
Connect each created operation with process flow in the following order.

Order Name

1 Write XML File

2 Create response data

This completes the script setting.

Register to Server
To start the script from SAP BC trigger, the script need to be registered to the server. Select [File]-[Register project as service] on Designer and register it to the server.

Create SAP BC Trigger
Creates the SAP BC trigger to receive outbound from SAP system and execute the created script.

Create Trigger

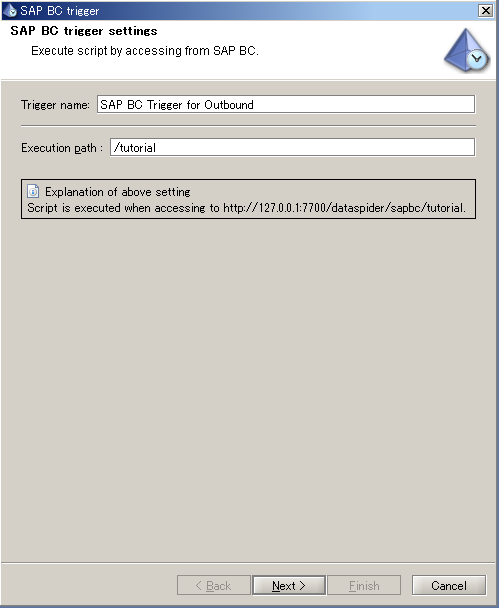

Select [Create new SAP BC trigger] from Task of My Trigger, SAP BC Trigger setting screen is shown. Sets the following value on the SAP BC Trigger Setting Screen.
Refer to "SAP BC Trigger Guide" for the details of properties .

Item name Value

Trigger name SAP BC Trigger for Outbound

Execution path /tutorial

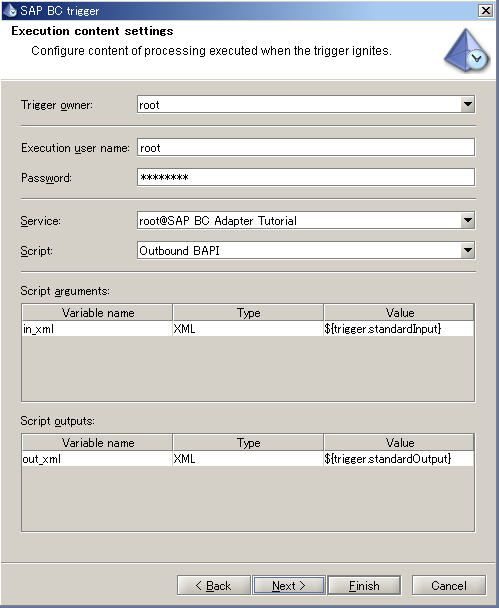

Press [Next] to show the SAP BC trigger execution contents setting screen. Sets the following value on the SAP BC Execution Contents Setting Screen. For other property items, please change accordingly.
About the settings of script argument variables and script output variables, please refer to "Trigger Variable Settings" .

Item name Value

Service For tutorial, select "root@SAP BC adapter tutorial".

Script For tutorial, select "Outbound BAPI".

Script arguments /in_xml ${trigger.standardInput}

Script Output /out_xml ${trigger.standardOutput}

Click [Finish] to create SAP BC trigger. Press [Yes] in the "Trigger enabling confirmation" dialog to enable the trigger. When the trigger is enabled, it can receive the outbound processing from SAP system.

Register Routing Rules
To register routing rules, executes ABAP program "SRFCCONN" to call function "STFC_CONNECTION" to RFC destination "BC_STFC_CON". Execute transaction code "SA38" in SAP GUI.

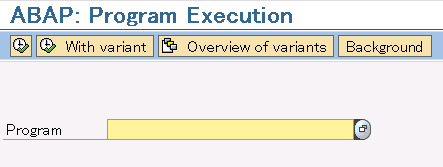

Enter the following values to ABAP Program Execution screen, and execute.

Item name Value

Program SRFCCONN

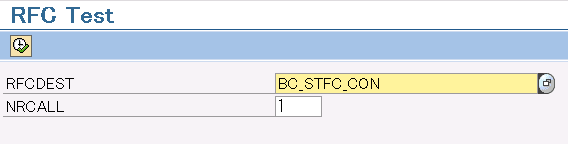

Enter the following values on RFC test screen, and execute.

Item name Value

RFCDEST BC_STFC_CON

NRCALL 1

As above, the routing rule of Sender being "M60CLNT300", Receiver being "BC_STFC_CON", MsgType being "STFC_CONNECTION" is registered to SAP BC.

Routing Rules setting
Press "Routing..." - "Routing Rules" to open "Routing Rule List".

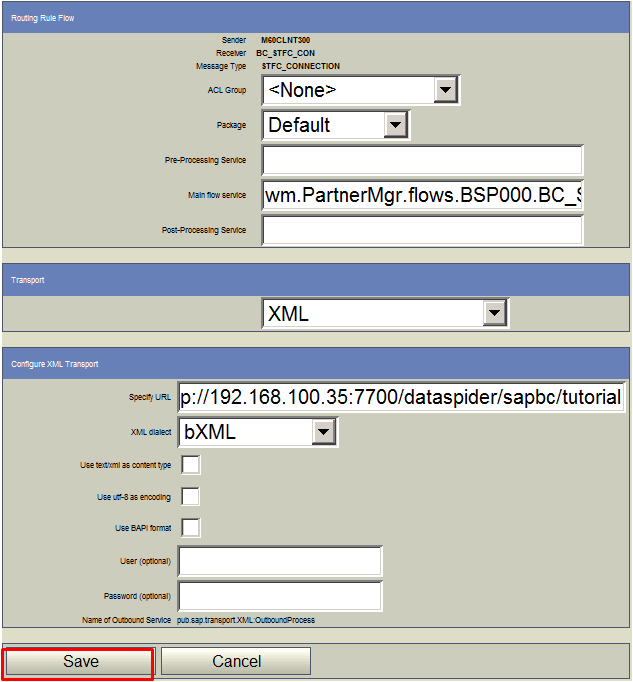

Press the "Edit" button of the registered routing rule and open the editing screen of routing rules. Enter the following values and press "Save" button.

Item name Value

Transport XML

Specify URL http://192.168.100.35:7700/dataspider/sapbc/tutorial
Change according to the host name or IP address, port number of the OS on which the DataSpiderServer operates.

XML dialect bXML

RFCTo execute the RFC versatile module or Idoc, set "SAP-XML" in "XML dialect" and check "Use text/xml as content type".

Press "No" of "Enabled?" column to set to "Yes".

Execution test
Again, executes ABAP program "SRFCCONN" to call function "STFC_CONNECTION" to RFC connection "BC_STFC_CON" Execute transaction code "SA38" in SAP GUI.

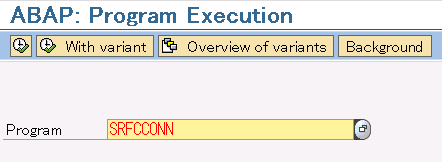

Enter the following values to ABAP Program Execution screen, and execute.

Item name Value

Program SRFCCONN

Enter the following values on RFC test screen, and execute.

Item name Value

RFCDEST BC_STFC_CON

NRCALL 1

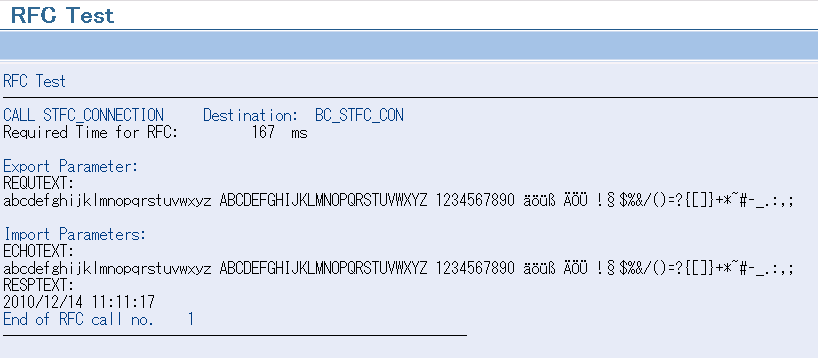

If the test is successful the following screen will appear.

Or check the status of trigger "SAP BC Trigger for Outbound" in My Trigger, and the "Normally Ended" is shown in [Last execution result].

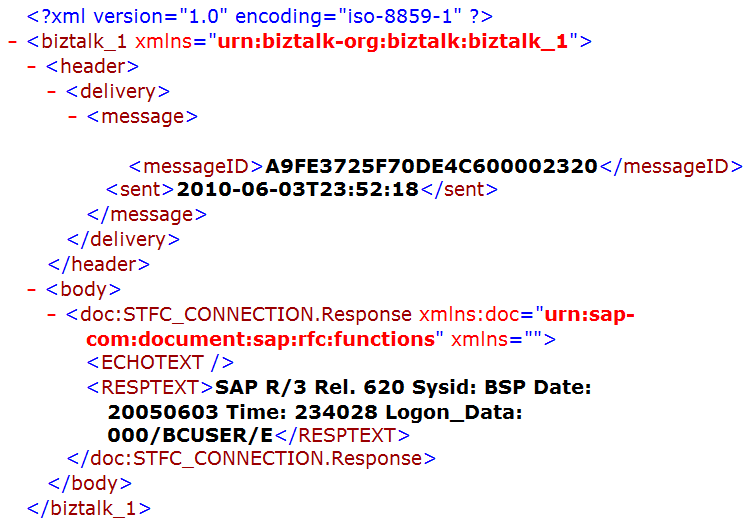

If the script has been successfully executed from the trigger, the following data is output to /data/sapbc/bapi_outbound/stfc_connection_output.xml.

<?xml version="1.0" encoding="Shift_JIS"?> <biztalk_1 xmlns="urn:biztalk-org:biztalk:biztalk_1"> <header> <delivery> <message> <messageID>A9FE3725F70DEBBB000023DD</messageID> <sent>2010-06-04T01:53:53</sent> </message> <to> <address>urn:sap-com:logical-system:BC_STFC_CON</address> </to> <from> <address>urn:sap-com:logical-system:BSP000</address> </from> </delivery> </header> <body> <doc:STFC_CONNECTION xmlns:doc="urn:sap-com:document:sap:rfc:functions" xmlns=""> <REQUTEXT>abcdefghijklmnopqrstuvwxyz ABCDEFGHIJKLMNOPQRSTUVWXYZ 1234567890 äöüß ÄÖÜ !§$%&/()=?{[]}+*~#-_.:,;</REQUTEXT> </doc:STFC_CONNECTION> </body> </biztalk_1>
