Inbound Processing Tutorial

In this tutorial, BAPI of SAP system is executed from DataSpider Servista script. RFC, IDoc can be executed in the same flow.
As a concrete process, SAP was to get banking information system for the BAPI "Bank. GetList "run, the acquired data to an XML file.

Configuration in Tutorial

In this tutorial, the following configuration is assumed. Please change it according to the actual environment.

Item name	Value
R/3 server	DEVECC2
System Number	00
Client Number	300

Preparation in Advance

Prepare RFC User
Registers RFC user for DataSpider Servista to the client to connect. If already registered, it is not necessary to register again.

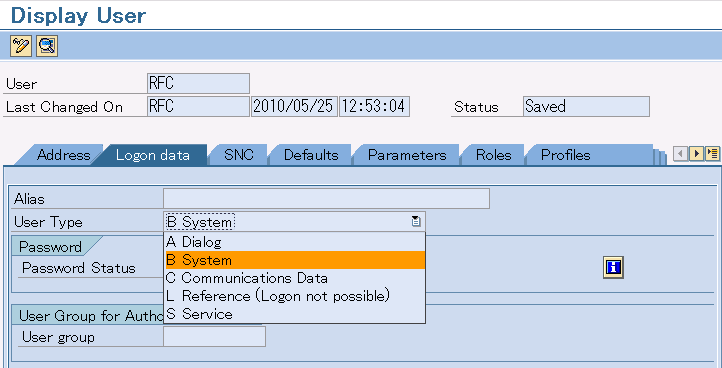

In general, creates user with type of "Communications data" or "System".

SAP Business Connector Settings

SAP Business Connector need to be set to execute inbound processing.

For more information about SAP BC settings, please refer to the manual of SAP BC.

Check SAP BC startup
Access to SAP BC by Web browser with the URL below.
"http://<hostname>:<port>/"

Item name Description

hostname The host name or IP Address of the OS on which SAP BC operates

port The port number that SAP BC is started.

By default, the following is set.

Item name Value

Port number 5555

User name Administrator

Password manage

Create SAP BC user
Create user for DataSpider Servista in SAP BC. If already created, it is not necessary to create again.

Press "Security"-"Users and Groups" of SAP BC to open ""Users and Groups" screen.

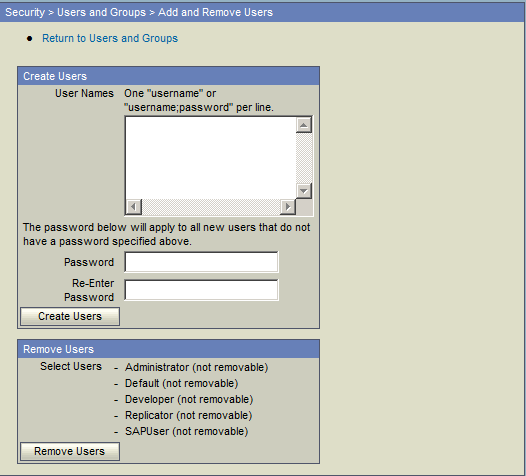

Press "Add and Remove Users" to open Create New User screen.

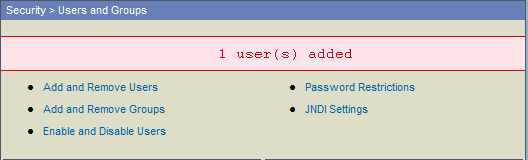

Enter the user name and password, press "Create Users" button.

Item name	Description
hostname	The host name or IP Address of the OS on which SAP BC operates
port	The port number that SAP BC is started.

Item name	Value
Port number	5555
User name	Administrator
Password	manage

Connection settings to SAP system
Set connection to SAP system in SAP BC. If already set, it is not necessary to set again.

Press "Adapters" - "SAP" to open SAP server setting screen.

SAP Menu

Press "Add SAP Server" and enter the information of the SAP system to connect. The settings are as follows.

Item name	Description
Name	Name on display
User	User name to log in to SAP system For tutorial, enter "RFC".
Password	Password of the user to log in to SAP system
Client	Client Number For tutorial, enter "300".
Application Server	The host name or IP address of the SAP system For tutorial, enter "DEVECC2".
System Number	System Number For tutorial, enter "00".

Enter the required information and press "Save" button.

Press the names of the added SAP system to open SAP system setting screen.

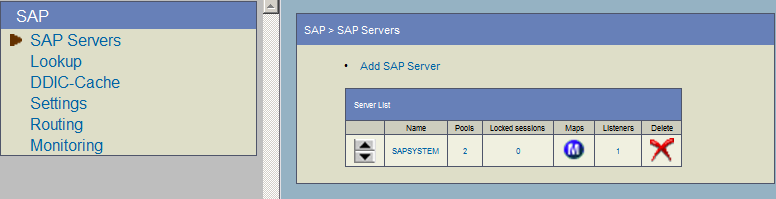

SAP server list

Press "Test Connection" button of the SAP system setting screen to test connection.

Connection test

Get XML template
Gets XML template as the input schema of SAP BC adapter.

Press "Adapters" - "SAP" to open SAP server setting screen.

Press "Lookup" to open the module searching screen.

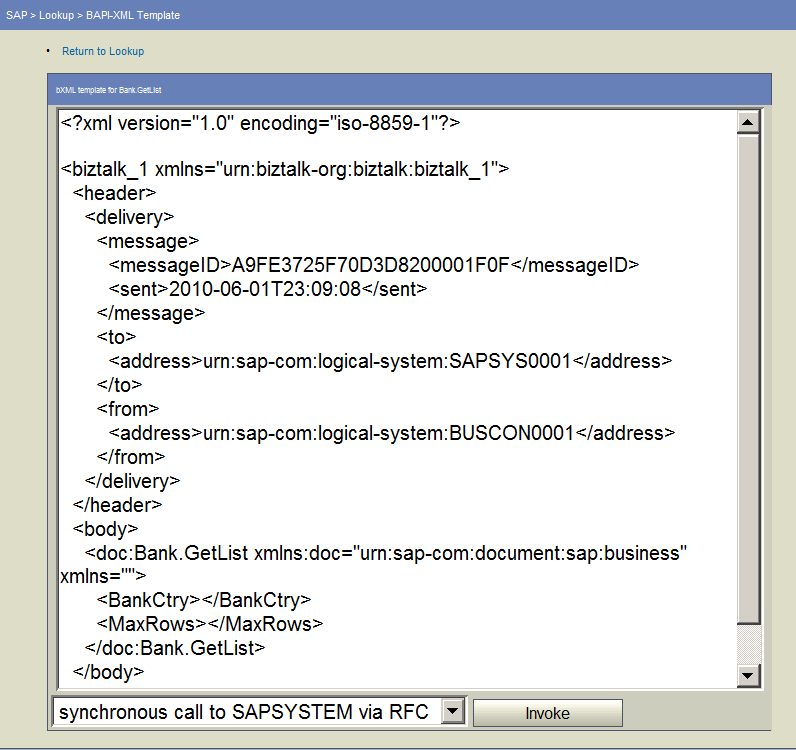

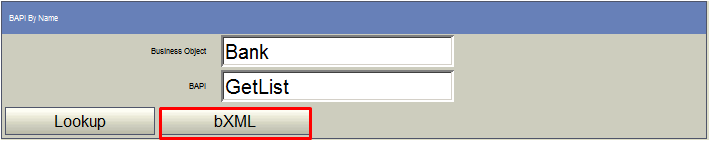

Enter the following information on the module searching screen and press "bXML" button.

Item name Value

Business Object Bank

BAPI GetList

When getting XML template of RFC general module, enter the RFC general module name to execute to "Function Name" and press "RFC-XML" button.
Please contact SAP corporation about how to get XML template of IDoc.

Action Check on SAP BC
Check the action on SAP BC.

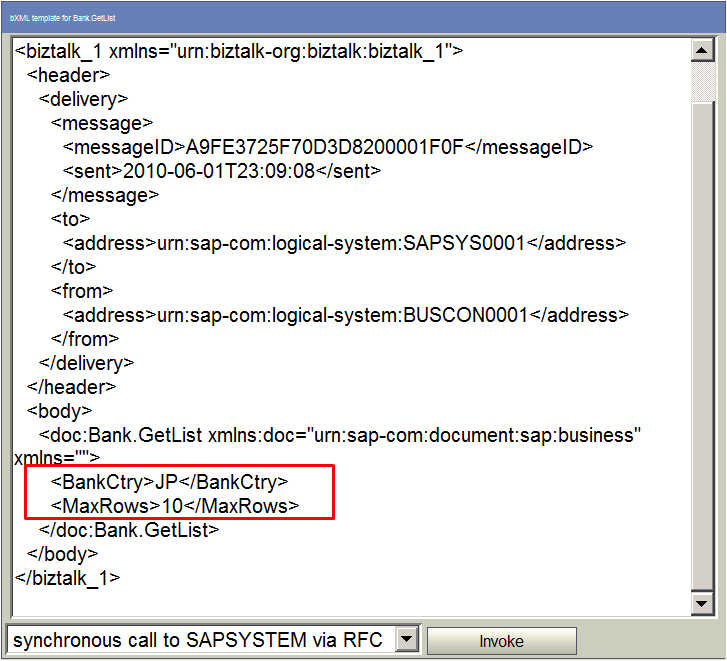

Enter the following test value to the shown XML template.

Element name Value

BankCtry JP

MaxRows 10

Test value changes depending on the used module or customization of SAP system. For more information, please contact the application consultant of SAP

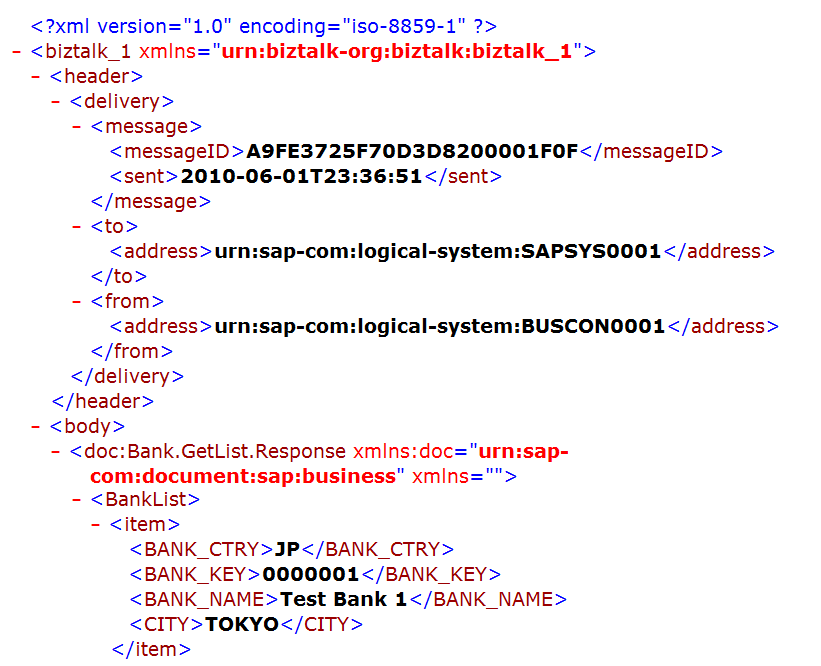

Press "Invoke" button to test execution.

Store XML template for Input data
Create input data of SAP BC from the XML template data.

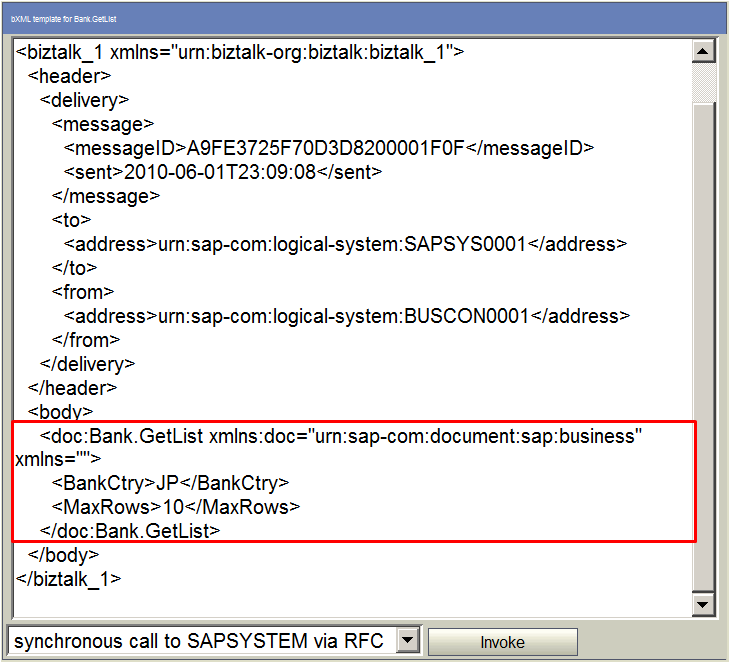

Select from <doc> element to </doc> element of XML template, copy it, and save as a file under the directory below. Create the directory if necessary.

Item name Value

Pass /data/sapbc/bapi_inbound/bank_getlist_input.xml

Use from <rfc> element to </rfc> element when creating input data for RFC general module.
Input data for IDoc is all IDoc type elements. When executing ALEREQ01, uses all ALEREQ01 elements including control record/data record.

Item name	Value
Business Object	Bank
BAPI	GetList

Element name	Value
BankCtry	JP
MaxRows	10

Item name	Value
Pass	/data/sapbc/bapi_inbound/bank_getlist_input.xml

Call from SAP BC Adapter

BAPI "Bank.GetList" call from the adapter to the SAP BC.

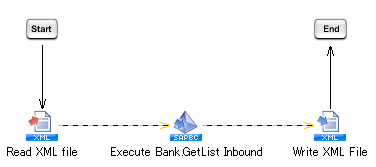

Completed Script Image
XML input data retrieved by the adapter, SAP BC through the adapter BAPI "Bank. GetList" passes, SAP system data to an XML result returned by the adapter.

Create Global Resource
Create global resource of SAP BC adapter in the [Global Resource Settings] of [Control Panel].

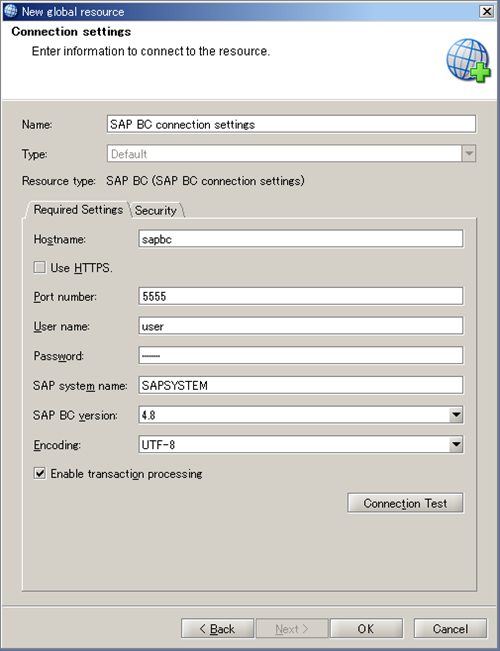

Sets the following value on the Global Resource Setting screen of SAP BC adapter. Uses default value for other property settings.

For more information about the settings, refer to "Global Resource Properties" .

Item name	Value
Name	SAP BC 4.8 Connection Settings
Hostname	For tutorial, enter "sapbc".
Port number	For tutorial, enter "5555".
User name	For tutorial, enter "user".
Password	Enter the password of the user to connect to SAP BC system.
SAP system name	For tutorial, enter "SAPSYSTEM".

Create Project and Script
Creates project and script of the follows.

Item name Value

Project Name SAP BC Adapter Tutorial

Script Name Inbound BAP

Edit XML template for Input data
Edit XML template for input data stored in "/data/sapbc/bapi_inbound/bank_getlist_input.xml" and enter the following data.

Element name Value

BankCtry JP

MaxRows 3
<?xml version="1.0" encoding="Shift_JIS"?> <doc:bBank.GetList xmlns:doc="urn:sap-com:document:sap:business" xmlns=""> <BankCtry>JP</BankCtry> <MaxRows>3</MaxRows> </doc:Bank.GetList>

Create Read XML File
Place "File" - "XML" - "Read XML file" of tool palette on Script Canvas.
Set the following values in the property settings dialog of Execute Inbound.

Category Item name Value

Basic settings Name Read XML file

Required settings File /data/sapbc/bapi_inbound/bank_getlist_input.xml

Item name	Value
Project Name	SAP BC Adapter Tutorial
Script Name	Inbound BAP

Element name	Value
BankCtry	JP
MaxRows	3

Category	Item name	Value
Basic settings	Name	Read XML file
Required settings	File	/data/sapbc/bapi_inbound/bank_getlist_input.xml

Create Execute Inbound
Place "Application" - "SAP BC" - "Execute Inbound" of Tool Palette to Script Canvas.

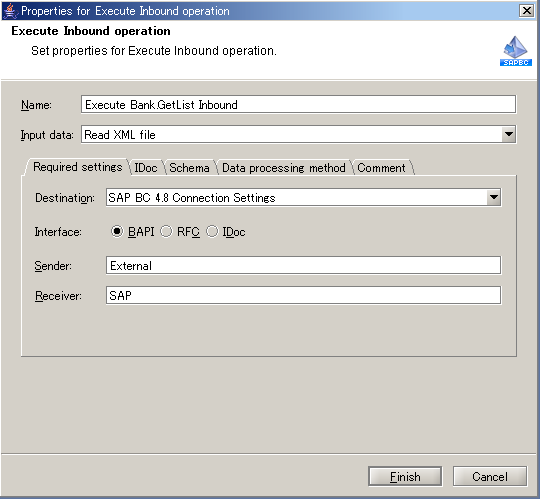

Set the following values in the property settings dialog of Execute Inbound.

For more information on each property item, please refer to "Execute Inbound" .

Category	Item name	Value
Basic settings	Name	Bank.Inbound run GetList
Basic settings	Input data	Read XML file
Required settings	Destination	SAP BC 4.8 Connection Settings
	Interface	BAPI
	Sender	For tutorial, enter "External".
	Receiver	For tutorial, enter "SAP".

Create Write XML File
Place "File" - "XML" - "Write XML file" of tool palette on Script Canvas.
Set the following values in the property settings dialog of Write XML File.

Category Item name Value

Basic settings Name Write XML File

Input data Bank.Inbound run GetList

Required settings File /data/sap/bapi_inbound/bank_getlist_output.xml

Process Flow Settings
Connect each created operation with process flow in the following order.

Order Name

1 Read XML file

2 Bank.Inbound run GetList

3 Write XML File

This completes the script setting.

Routing Rules setting
To call SAP system processing from SAP BC, routing rules need to be set in SAP BC. By executing the created script, the routing rules can be easily set.

Executes the created script "BAPI Inbound" and routing rules are registered to SAP BC.
Press "Routing..."-"Routing Rules" to open the routing rules list.

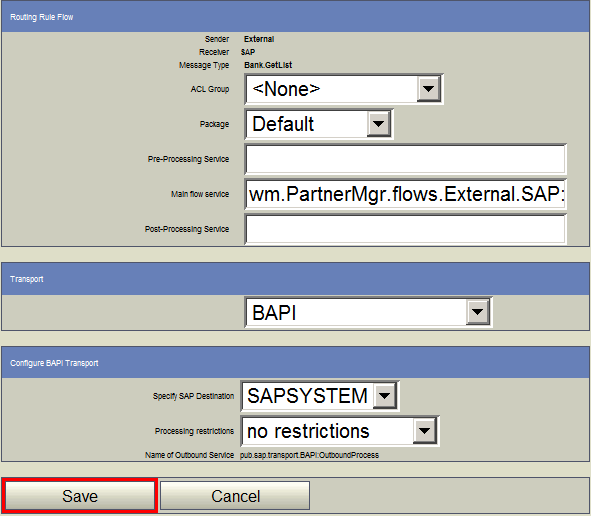

Press the "Edit" button of the registered routing rule and open the editing screen of routing rules. Enter the following values and press "Save" button.

Item name Value

Transport BAPI

When executing RFC general module, set "RFC" to "Transport"
When executing IDoc, set "ALE (R/3 IDOC)" to "Transport".

Press "No" of "Enabled?" column to set to "Yes".

Category	Item name	Value
Basic settings	Name	Write XML File
Input data	Bank.Inbound run GetList
Required settings	File	/data/sap/bapi_inbound/bank_getlist_output.xml

Order	Name
1	Read XML file
2	Bank.Inbound run GetList
3	Write XML File

Item name	Value
Transport	BAPI

Execute script
Execute script "Inbound BAPI".

"/data/sapbc/bapi_inbound/bank_getlist_output.xml" file BAPI "Bank.GetList" output is a result of running.

<?xml version="1.0" encoding="Shift_JIS"?>
<biztalk_1 xmlns="urn:biztalk-org:biztalk:biztalk_1">
  <header>
    <delivery>
      <message>
        <messageID>A9FE3725F70D8DB5000021F9</messageID>
        <sent>2010-06-02T22:30:42</sent>
      </message>
      <to>
        <address>urn:sap-com:logical-system:SAP</address>
      </to>
      <from>
        <address>urn:sap-com:logical-system:External</address>
      </from>
    </delivery>
  </header>
  <body>
    <doc:Bank.GetList.Response xmlns:doc="urn:sap-com:document:sap:business" xmlns="">
      <BankList>
        <item>
          <BANK_CTRY>JP</BANK_CTRY>
          <BANK_KEY>0000001</BANK_KEY>
          <BANK_NAME>Test Bank 1</BANK_NAME>
          <CITY>TOKYO</CITY>
        </item>
        <item>
          <BANK_CTRY>JP</BANK_CTRY>
          <BANK_KEY>0000002</BANK_KEY>
          <BANK_NAME>Test Bank 2</BANK_NAME>
          <CITY>TOKYO</CITY>
        </item>
        <item>
          <BANK_CTRY>JP</BANK_CTRY>
          <BANK_KEY>0000003</BANK_KEY>
          <BANK_NAME>Test Bank 3</BANK_NAME>
          <CITY>TOKYO</CITY>
        </item>
      </BankList>
      <Return>
        <TYPE/>
        <ID/>
        <NUMBER>000</NUMBER>
        <MESSAGE/>
        <LOG_NO/>
        <LOG_MSG_NO>000000</LOG_MSG_NO>
        <MESSAGE_V1/>
        <MESSAGE_V2/>
        <MESSAGE_V3/>
        <MESSAGE_V4/>
        <PARAMETER/>
        <ROW>0</ROW>
        <FIELD/>
        <SYSTEM/>
      </Return>
    </doc:Bank.GetList.Response>
  </body>
</biztalk_1>
