Update(RecordTypePicklistValue)

Operation Name

Function Overview

This operation performs a Update operation of the record type's selectable picklist value, based on input data.
Send all records in one call, regardless of the number of input data.
Call type or the result of the process faliure will differ depending on the API version of the Global Resource.

API 29.0 or earlier

API 34.0 or later

With regarding to the API specification utilized by this operation, please refer to the version of the API document, selected for the Global Resource, in the below-mentioned link.

"Salesforce Developer Documentation"-(https://developer.salesforce.com/docs)
- Metadata API Developer's Guide

Data Model

The data model of this component is the Table Model type.

Properties

For information about using variables, refer to "variables".

Basic Settings

Item name	Required/Optional	Use of Variables	Description	Supplement
Name	Required	Not Available	Enter the name that appears on the script canvas.
Input Data	Required	Not Available	Select the component on the script canvas.

Required Settings

Item name	Required/Optional	Use of Variables	Description	Supplement
Destination	Required	Not Available	Select Global Resources. [Add...]: Add new global resource. [Edit...]: Global resource settings can be edited by [Edit Resource list].
Table Name	Required	Not Available	Specify the Salesforce table name.	Only tables which can be obtained by MetadataAPI are selectable.
Record type	Required	Not Available	Specify the record type.
PicklistFieldName	Required	Not Available	Specify the select list field name.

Option Settings

Item name	Required/Optional	Use of Variables	Description	Supplement
Obtaining results after waiting for the completion of the operation	Optional	Not Available	The processes are asynchronously executed at the server side after issuing a request. Select whether or not to monitor the situation until the server-side processings are finished, and to obtain the results. [Checked]:(default) Wait until the processes are finished, and then obtain the results. [Not Checked]: Obtain the results immediately after the request, without waiting for the processes to be finished.	Valid only when selecting API 29.0 or earlier.
Wait Time before the start of monitoring (sec)	Optional	Available	Enter the waiting time, until the beginning of monitoring, in seconds.	Valid only when selecting API 29.0 or earlier. Will be valid and required only when [Obtaining results after waiting for the completion of the operation] is checked. The default value is "3".
Monitoring Interval (sec)	Optional	Available	Enter the monitoring intervals.	Valid only when selecting API 29.0 or earlier. Will be valid and required only when [Obtaining results after waiting for the completion of the operation] is checked. The default value is "10".

Property Action

Item name	Description	Supplement
Display of Table Information...	You can check the table structure of the object you are operating. For more information on how to view the table structure, please refer to Display of Table Information	Click [Load All Table Information....] if you would like to check the table structure of other objects.
Load All Table Information	Retrieve all possible table information After running, you can verify the retrieved information from [Table Information].

Comment

Item name	Required/Optional	Use of Variables	Description	Supplement
Comment	Optional	Not Available	You can write a short description of this adapter. The description will be reflected in the specifications.

Schema

Input Schema

<?xml version="1.0" encoding="UTF-8" ?>
<table>
  <row>
    <column>value</column>
  </row>
  <row>
  :
  </row>
</table>

Element Name	Column Name	Description	Supplement
row	-	Repeats as many times as the number of picklist values to be set.
column	value	Passes the picklist value to be set.

Output Schema

There is no result in the unit of input data, because the update processing of the record type's picklist value is performed as a whole.
The result information can be obtained from the component variables.

Reading Schema by Mapper

The schema will be read automatically.

Please refer to Editing Schema for detials.

Transaction

Transaction is not supported.

Usage on PSP Script

Cannot be used on PSP Script.

Available Component variables

Component Variable Name	Description	Supplement
read_count	The number of passed data is stored.	The default value is null.
result_async_done	The completion flag (true,false) of the processing results(AsyncResult) is stored.	The default value is null. Stored only when selecting API 29.0 or earlier.
result_async_id	The ID of the processing results(AsyncResult) is stored.	The default value is null. Stored only when selecting API 29.0 or earlier.
result_async_message	The message of the processing results(AsyncResult) is stored.	The default value is null. Stored only when selecting API 29.0 or earlier.
result_async_state	The state of the processing results(AsyncResult) is stored. [Queued]:The process has not begun. [InProgress]:Currently processing. [Completed]:The process has completed. [Error]:The process was not successful.	The default value is null. Stored only when selecting API 29.0 or earlier.
result_async_statusCode	The status code of the processing results(AsyncResult) is stored.	The default value is null. Stored only when selecting API 29.0 or earlier.
server_url	The end point URL after Login is stored.	The default value is null.
session_id	The session Id is stored.	The default value is null.
message_category	In the case that an error occurs, the category of the message code corresponding to the error is stored.	The default value is null.
message_code	In the case that an error occurs, the code of the message code corresponding to the error is stored.	The default value is null.
message_level	In the case that an error occurs, the importance of the message code corresponding to the error is stored.	The default value is null.
operation_api_exception_code	The ExceptionCode of the occured error, in a case of API error, is stored.	The default value is null. For any error other than an API Error, the value is not stored. The content to be stored may change according to the version of DataSpider Servista.
operation_error_message	If an error occurs, the error message of the occured error is stored.	The default value is null. The content to be stored may change according to the version of DataSpider Servista.
operation_error_trace	When an error occurs, the trace information of the occured error is stored.	The default value is null. The content to be stored may change according to the version of DataSpider Servista.

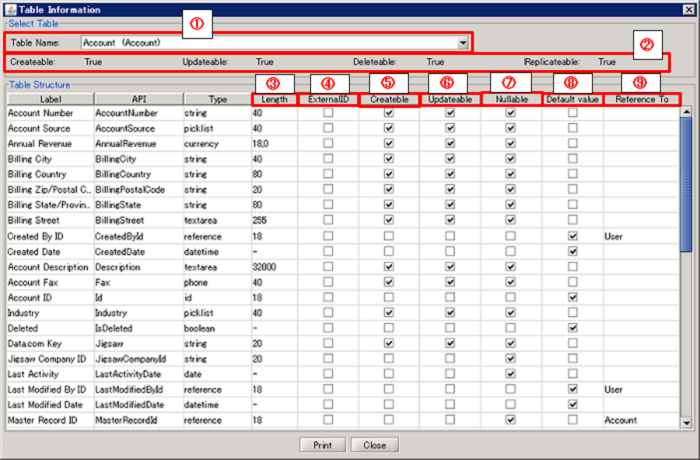

Display of Table Information

This display shows the available operations on Salesforce tables as well as field properties of the tables.
Also, the field information can be printed out.

Number in the Image	Name	Description
(1)	Table Name	Select the table whose structure to be shown.
(2)	Table Information	Display the available operations on the selected table.
(3)	Length	Display the Number of Digit of item
(4)	External ID	Display whether or not the object item is set as an external ID.
(5)	Createble	Display whether or not it can be set a value when adding data.
(6)	Updatable	Display whether or not it can be set a value when updating data.
(7)	Nullable	Display whether or not it can be set NULL when adding or updating data.
(8)	Default value	Display whether or not Salesforce automatically set a default value when adding data.
(9)	Reference To	Display the referring object name if the item is in reference relationship or master-servant relationship.

Specification Limits

In order to perform data reading and writing with this adapter, API's of Salesforce organization must be published.

All permissions for reading/writing data and other operations, as well as data access control, depend upon the profile, shared rule setting and API specifications in Salesforce.

Database.com users cannot use this operation, because describeLayout() service is not supported.

The objects and fields that can be used may differ by API version. For details, please refer to the Salesforce documentation.

Main exceptions

Exception Name	Reason	Resolution
ResourceNotFoundException Resource Definition is Not Found. Name:[]	[Destination] is not specified.	Specify [Destination].
ResourceNotFoundException Resource Definition is Not Found. Name:[<Global Resource Name>]	The resource definition selected in [Destination] cannot be found.	Verify the global resource specified in [Destination]
java.net.UnknownHostException	This exception occurs when the PROXY server specified in the global resource cannot be found.	Verify the condition of the PROXY server. Or verify [Proxy Host] of the global resource specified in the [Destination].
java.net.SocketTimeoutException connect timed out	A time-out has occurred while connecting to Salesforce.	Verify the network condition and Salesforce server condition. Or check [Connection timeout(sec)] of the global resource specified in the [Destination].
java.net.SocketTimeoutException Read timed out	A time-out has occurred while waiting for a responce from the server after connecting to Salesforce.	Verify the network condition and Salesforce server condition. Or check [Timeout(sec)] of the global resource specified in the [Destination].
jp.co.headsol.salesforce.adapter.exception.SalesforceAdapterIllegalArgumentException	Invalid value is set for the property of Salesforce adapter.	Check the error message, and verify the settings.
com.sforce.soap.partner.fault.LoginFault	Login to Salesforce has failed.	Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.
com.sforce.soap.partner.fault.InvalidFieldFault	An item included in the executed SOQL is invalid.	Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.
com.sforce.soap.partner.fault.UnexpectedErrorFault	An unexpected error has occured while processing to Salesforce.	Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.
