[Document Mapper]Replace by Regular Expression

Logic Name

Replace by Regular Expression

Function

Replaces the input string by regular expression and returns the result.

Data Types

Location	Type
The first input handler	String
Logic output	String

Refer to "Logic Specifications" for details.

Properties

Category	Property	Description
Required	String before replacement(regular expression pattern)	Specify the pattern of string to replace.
Required	String after replacement	Specify the string to replace with.
Comment	Comment	The comment will also be output to the specifications.It does not affect the conversion process.

Function Details

Regular expression pattern

The available regular expression pattern is in accordance with java.util.regex.Pattern class of Java.

For details, refer to "Java(TM) Platform, Standard Edition 8 API Specification"(the URL below).(http://docs.oracle.com/javase/8/docs/api/java/util/regex/Pattern.html)

Regular Expression Reference

Reference notation	Meaning
^	Beginning of line
$	End of line
.	Any single character except newline
[]	Any single character enclosed with[]
[^]	Any single character not enclosed with[]
*	Repeats the previous character for 0 time or more.
+	Repeats the previous character for once or more.
?	0 or 1 of the previous character
{a}	Repeats the previous character for exactly "a" times.
{a,}	Repeats the previous character for "a" or more than "a" times.
{a,b}	Repeats the previous character for "a" to "b" times.
\|	Alternative operator(OR)
\	Escape character

String after replacement

Replace by Regular Expression uses replaceAll() method of java.lang.String class.
As a result, a dollar sign ($) may be treated as a reference to a captured subsequence in a string after replacement, and a backslash (\) is used to escape a character in the string.
When you output a backslash or a dollar sign, escape it with a backslash.

String before replacement (regular expression pattern)	String after replacement	The first input handler	Logic output
(\d{1,2}:\d{2}) PM	$1 p.m.	9:00 PM	9:00 p.m.
(\d{1,2}:\d{2}) PM	\$1 p.m.	9:00 PM	$1 p.m.
c	\*	abcde	ab*de
c	\\*	abcde	ab\*de

For details on String.replaceAll() method, refer to “Java(TM) Platform, Standard Edition 8 API Specification” (http://docs.oracle.com/javase/8/docs/api/java/lang/String.html#replaceAll-java.lang.String-java.lang.String-).

Logic Sample

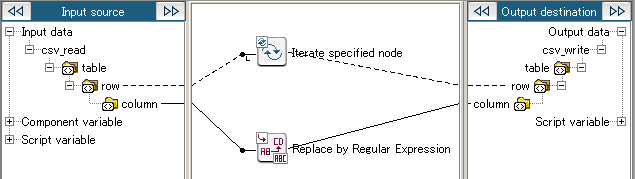

Mapping Definition

Logic Settings and Processing Result

The logic converts product code to "*".

Property Settings

Property	Setting
String before replacement(regular expression pattern)	[A-Z]{3}-[0-9]{3}
String after replacement	*-*

Input Data

Sample A(ACE-036)

Sample B(KMO-147)

Sample C(VXZ-258)

Result Data

Sample A(***-***)

Sample B(***-***)

Sample C(***-***)
