Read Table

Operation Name

Read Table

Function Overview

Read data from a table in Microsoft Dynamics AX.

Data Model

Data model of this type of component is table model type.

Properties

Basic settings

Item name	Required / Optional	Use of Variables	Description	Remarks
Name	Required	Not available	Enter the name on the script canvas.

Required settings

Item name	Required / Optional	Use of Variables	Description	Remarks
Destination	Required	Not available	Select Global Resources. [Add]: Add new global resource. [Edit list]: Global resource settings can be edited by "Edit resource list".
Table Name	Required	Available	Enter the name of a table in Microsoft Dynamics AX.	The name of view is also can be used.
Select statement for AX	Required	Available	Enter a select statement and replace the table name in the select statement to %1 Example1:select * from %1 where %1.name == 'test' && %1._int <= 1000 Example2:select * from %1 where %1.name == '${value}'	If the double quotation (") needs to be used in the select statement, it is essential to a escape symbol backslash for each double quotation ("). Example:select * from %1 where %1.name == \"test\" When column names are specified in a select statement, all column names set in [Output/Column Name] should be input in the select statement. For more information, please refer to "About select statement"
Output	Required	-	Set the schema definition specified in [Table Name].
Output/Column Name	Required	Available	Enter the column name of the table in Microsoft Dynamics AX. You can set the first column of the file specified in property action of [Read column name from file] as the column name.
Output/Data Type	Required	Not available	Select a data type for the column. You can set the second column of the file specified in property action of [Read column name from file] as the data type.	Displayed in the format of "Native type (Internal data type)" . Native type: The data type of Microsoft Dynamics AX. Internal data type: Data type used internally in DataSpider(specific data types of Java). Displayed in the format of "Native type" when Native type is same as Internal data type.

Property Action

Item name	Description	Remarks
Read column name from file	Select the file in the file Selectr and set the first column of the file as the column name. Set the second column of the file as the data type.	Six characters used as delmiter are "half comma(,)", "tab", "space ( )", "semicolon (;)", "slash (/)" and "Vertical bar (\|)". If the second column does not match the spelling of any word in data type list, blank will be shown and "String" will be used. Characters after third column will be neglected.

Comment

Item name	Required / Optional	Use of Variables	Description	Remarks
Comment	Optional	Not available	You can write a short description of this adapter. The description will be reflected in the specifications.

Schema

Input Schema

None.

Output Schema

Depending on the settings for the [Output] the number of columns may vary.

See "Schema of Table Model" for details regarding schema structure.

Loading schema in Mapper

Schema is loaded automatically.

For any details, please refer to the 'Editing Schema'

Mass data processing

Mass data processing is NOT supported.

Usage in a PSP script

Cannot be used in a PSP script.

Available Component variables

Component variable name	Description	Remarks
count	The number of read records by executing the select statement.	The value defaults to 0.
message_category	When an error occurs, the category to which corresponding message code belongs to is stored.	The value defaults to null.
message_code	When an error occurs, its corresponding message code is stored.	The value defaults to null.
message_level	When an error occurs, the severity of the corresponding message code is stored.	The value defaults to null.
error_type	When an error occurs, the type of the error is stored.	The value defaults to null. Error is represented in the format depicted below. Example:java.io.FileNotFoundException The message may vary depending on DataSpider Servista version.
error_message	The error message for the error occurred is stored.	The value defaults to null. The message may vary depending on DataSpider Servista version.
error_trace	Stack trace of the occurred error is stored.	The value defaults to null. The message may vary depending on DataSpider Servista version or the client application used.

Specification Limits

Cannot read data from two or more tables in Microsoft Dynamics AX.

[Output/Data type] includes Integer, INT64, REAL, String, Date only. Other data types in Microsoft Dynamics AX cannot be used.

Same limits as Microsoft Dynamics AX .NET Business Connector.

Main exceptions

Exception name	Causes	Solution
ResourceNotFoundException Resource not defined.Name: []	[Destination] is not specified.	Specify [Destination].
ResourceNotFoundException Resource not defined.Name:[<name of Global Resources>]	Resource definition selected in [Destination] is not found.	Please check the global resource specified in [Destination].
InvalidPropertyConfigurationException <Global resource name >:There is no BusinessConnector connection.	Resource definition selected in [Destination] is not found.	Please check the global resource specified in [Destination].
BusinessConnectorException <Global resource name> Required connection settings cannot be null. Cannot connect to AX server.	[Destination]Resource definition is insufficient.	Please check all items of resource definition selected in [Destination].
InvalidPropertyConfigurationException Table name cannot be null.	[Table Name] is not set.	Enter [Table Name]
BusinessConnectorException The operation failed. The record [<Table Name>] does not exist.	[<Table Name>] may be incorrect.	Please check the name of table in Microsoft Dynamics AX.
InvalidPropertyConfigurationException It is not a SELECT statement.	[<Select statement for AX>] may be incorrect.	Please check the input of [Select statement for AX].
BusinessConnectorException ExcecuteStmt Error(sql=[<Select statement for AX>])[Table][<Table Name>]	Cannot execute [<Select statement for AX>].	Please check the input of [Select statement for AX].
InvalidPropertyConfigurationException No output column setting.	[Output] is not set.	Please check the setting of [Output].
BusinessConnectorException get_Field Error(col=[<Output/Column Name>])	[<Output/Column Name>] may be incorrect.	Please check the [<Output/Column Name>] in Microsoft Dynamics AX table.
Exception Error coltype number	The column names in [<Select statement for AX>] may be incorrect.	Please check the input of [Select statement for AX].

Notes

The output data will be casted to Java data type.

About select Statement

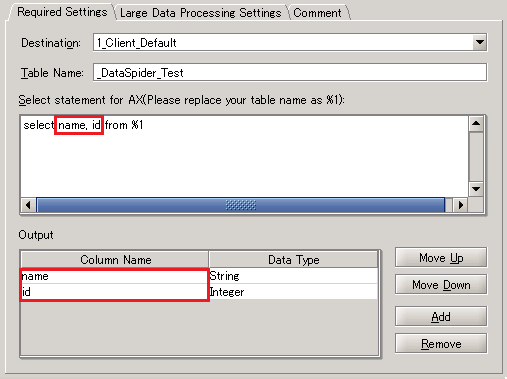

When do Read Table, the select statement input in [Select Statement for AX] should be used in Microsoft Dynamics AX. If "*" following "select" in the select statement is not used, spacified column names in a select statement should include all column names which are set in [Output/Column Name].

If spacified column names in a select statement are less than the settings of [Output/Column Name], error will occur.
