[Merge Mapper]Replace Each Character

Logic Name

Replace Each Character

Function

Replaces the input string character by character and returns the result.

Data Types

Location	Type
The first input handler	String
Logic output	String

Refer to "Logic Specifications" for details.

Properties

Category	Property	Description
Required	Input character set	Specify the input character set.
Required	Output character set	Specify the output character set.
Comment	Comment	The comment will also be output to the specifications.It does not affect the conversion process.

Function Details

Specify and replaces the characters one-to-one.
The n-th character of [Input character set] is in accordance to that of [Output character set] respectively.

Notes

If the number of character in [Input character set] does not match with the one in [Output character set], characters left are ignored.

Logic Sample

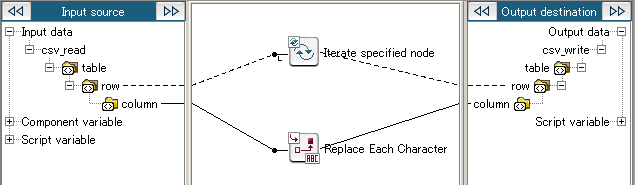

Mapping Definition

Logic Settings and Processing Result

Convert "a" into "1", "b" into "2", and "c" into "3".

Property Settings

Property	Setting
Input character set	ABC
Output character set	123

Input Data

A.introduction, B.overview, C.detail

Result Data

1.introduction, 2.overview, 3.detail
