[Merge Mapper]Encrypt

Logic Name

Encrypt

Function

Encrypts the input string.

Data Types

Location	Type
The first input handler	String
The second input handler	String
Logic output	String

Refer to "Logic Specifications" for details.

Properties

Category	Property	Description
Null processing	Null option	Specify how to handle the input if it contains null.
Comment	Comment	The comment will also be output to the specifications.It does not affect the conversion process.

Null option

Option	Description
Output null if first input handler is null	Outputs null if the value of the first input handler is null.
Throw exception when unable to determine/calculate/process	Throws exception (CalculationException) when unable to determine/calculate/process.

Refer to "Logic Specifications" for details.

Function Details

Encrypts the value of the first input handler with the value of the second input handler as a key and output.
The encrypted data can be decrypted by using the "Decrypt" logic.

Notes

[Null option] will only apply to the first input handler, which serves as input data.

Exception is thrown when the value of the second input handler, which serves as the encryption key, is null.

Logic Sample

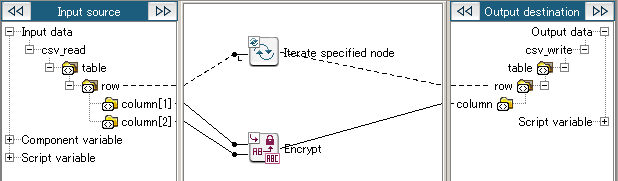

Mapping Definition

Logic Settings and Processing Result

The logic encrypts decrypted value, and outputs encrypted value.

Property Settings

Property	Setting
Null option	Output null if first input handler is null

Input Data

Data,vaFD23$

SampleData,b#%9fDv

123456789,Po8'&i(

Result Data

BO8iiUy0bR7zTLrMUZIjIIi6bqqpNv6jFwCAIbzLjFs=

EKOUC4WYasoixMeaFx7baSUbcyuHoy/CzUYlMI9E7QY=

fmRh9R6Jni6kqZrs3RBhKOSHJgeJdMnsbZnq2uSgjJ0=
